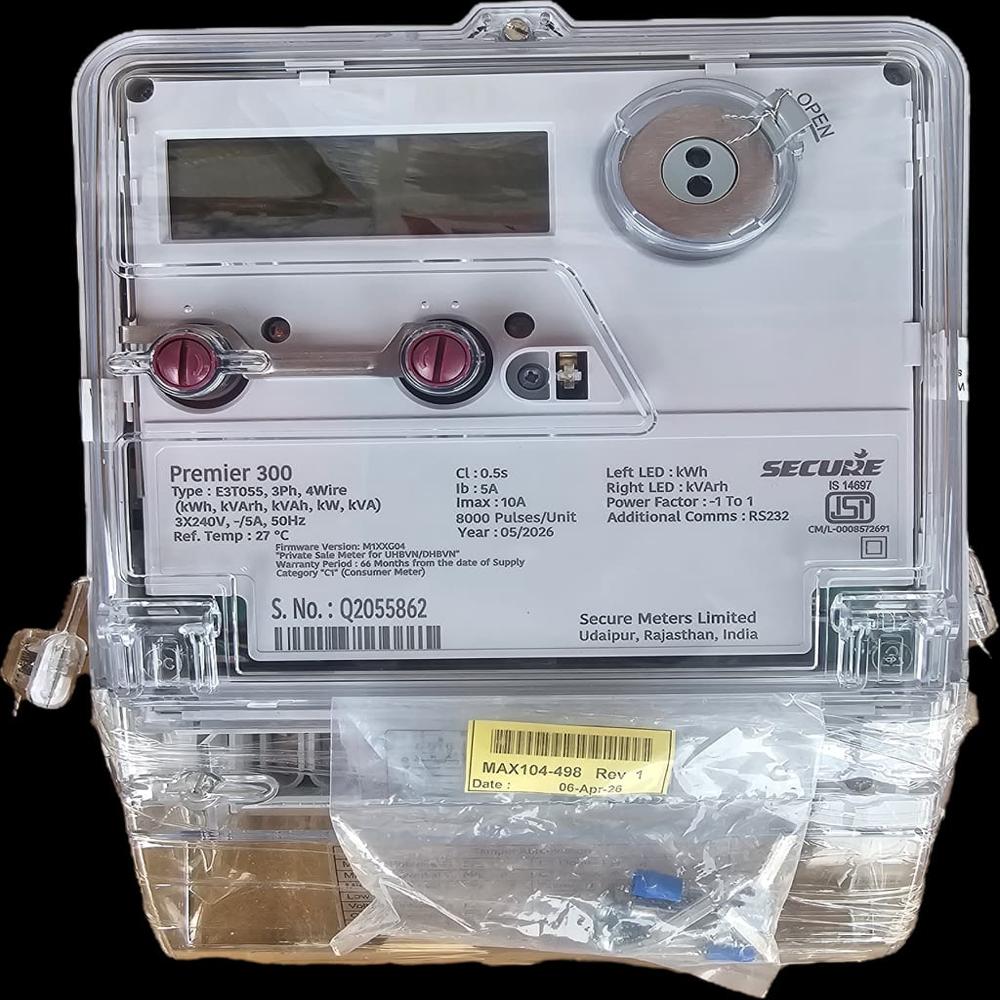

SECURE Premier 300 TVM - DHBVN / UHBVN Approved LTCT Operated Gross Meter

Name: SECURE Premier 300 TVM - DHBVN / UHBVN Approved LTCT Operated Gross Meter
Brand: Indo Overseas Marketing
Price: 6999.0 INR
Availability: InStock

Price 6999.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

SECURE Premier 300 TVM - DHBVN / UHBVN Approved LTCT Operated Gross Meter Specification

Batteries Type
Lithium (for RTC backup)

Resistant Feature
Weather-resistant, UV-stabilized housing

Accuracy
Class 0.5S

Usage & Applications
Electricity energy measurement for utilities (DHBVN/UHBVN approved)

Product Type
LTCT Operated Gross Meter

Material
Flame-retardant Polycarbonate

Measuring Voltage Range
3x240/415V AC (Phase/Neutral/Line)

Operating Temperature
-10C to +55C

Frequency (MHz)
50 Hz

Insulation Box
Polycarbonate box for electrical insulation

Protection System
Tamper proof; High voltage and surge protection

Size
Standard utility size

Color
Grey/Transparent

Dimension (L*W*H)
265mm x 178mm x 74mm

Weight
Approx. 2.5 kg

Meter Type
Trivector (Active, Reactive, Apparent energy)

Power Consumption
Less than 2W per phase

Start-up Current
0.1% Ib

Approval
DHBVN/UHBVN Approved

Mounting
Wall/panel mounting

Current Range
1A/5A via CTs

Phase Configuration
Three Phase Four Wire (3P4W)

Sealing
Provision for utility sealing

Burden
Current circuit: <0.5VA; Voltage circuit: <1.5W/10VA

Standards Compliance
IS 14697, IEC 62053-22

Communication Ports
Optical port, RS232/RS485

RTC Accuracy
<300 sec/year at 27C

Data Retention
Up to 10 years without power

Event Logging
Tamper events, load profile, billing data

Memory
Load survey data up to 60 days

Display
Large backlit LCD, up to 8 digits

About SECURE Premier 300 TVM - DHBVN / UHBVN Approved LTCT Operated Gross Meter

Unlock a brilliant opportunity with the SECURE Premier 300 TVM, now available through Special Advance Purchase offers and Sale deals! This top-notch gross meter, compliant with IS 14697 and IEC 62053-22 standards, boasts a soaring large backlit LCD and state-of-the-art trivector measurements (Active, Reactive, Apparent energy). Designed for reliability, it features tamper-proof protection, DHBVN/UHBVN approvals, and advanced communication ports. With robust event logging, a weather-resistant polycarbonate build, and high accuracy (Class 0.5S), it's the perfect solution for modern utilities seeking superior, long-lasting performance.

How to Use and Competitive Advantages

The SECURE Premier 300 TVM is designed for easy wall or panel mounting, making installation straightforward for utility professionals. As an LTCT operated gross meter, it's ideal for electricity measurement in three phase, four wire networks. Its competitive advantages include high accuracy (Class 0.5S), tamper-proof sealing, and advanced event logging. With weather-resistant housing and large LCD display, this meter stands out for reliability, precise data retention, and compliance with industry standards.

Domestic Market, Sample Availability & Payment Terms

The Premier 300 TVM is available across the main domestic markets, especially in sectors governed by DHBVN and UHBVN. Prospective clients may request a sample before finalizing their order. Quotations are provided promptly on demand, featuring a competitive asking price. Shipments are managed efficiently to ensure swift delivery. Flexible payment terms are offered to suit organizational needs. Reach out for a comprehensive quotation and experience top-notch service and product assurance.

FAQ's of SECURE Premier 300 TVM - DHBVN / UHBVN Approved LTCT Operated Gross Meter:

Q: How is the SECURE Premier 300 TVM installed and commissioned?

A: The meter is designed for wall or panel mounting using a standard utility arrangement. Installation should be carried out by qualified technicians, connecting via current transformers (CTs) for accurate LTCT operation as per regulatory guidelines.

Q: What are the key usage types and applications for this meter?

A: This meter is ideal for gross energy measurement in utilities, specifically for DHBVN and UHBVN networks. It's suitable for three phase, four wire billing, load surveys, and tamper event detection in both residential and industrial settings.

Q: When can I expect shipment after placing an order?

A: Shipment timelines depend on the existing stock and order quantity but are typically processed within a few working days after order confirmation and completion of payment terms.

Q: Where can samples or product quotations be requested?

A: Samples and official quotations can be requested directly from the authorized supplier or trader. Contact their sales team with your requirements for prompt assistance.

Q: What competitive advantages does the SECURE Premier 300 TVM offer over other LTCT meters?

A: This meter provides top-notch performance with features like Class 0.5S accuracy, tamper-proof design, weather-resistant housing, up to 60 days load survey memory, multi-port communication, and 10-year data retention without power-ensuring brilliant reliability and compliance.

Q: How does the meter help mitigate tampering risks?

A: The meter is equipped with tamper-proof seals, advanced event logging, and a robust polycarbonate insulated housing that provide high-voltage and surge protection, minimizing tampering and unauthorized access risks.
