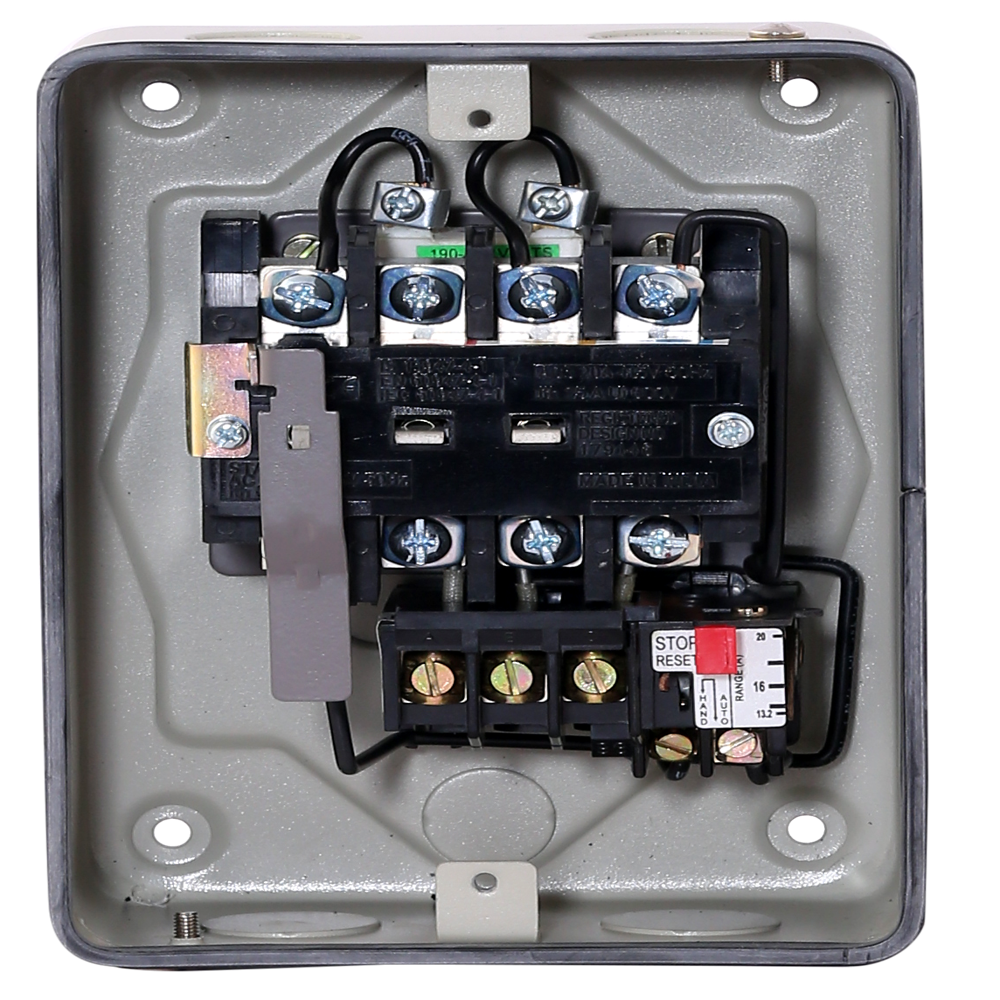

BCH - Shakti WP DOL Starter

Name: BCH - Shakti WP DOL Starter
Brand: Indo Overseas Marketing
Price: 1995.0 INR
Availability: InStock

Price 1995.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

BCH - Shakti WP DOL Starter Specification

Rated Insulation Voltage
690V

Current Rating
16A, 25A, 32A

Components
Contactors, Thermal Overload Relay, Start-Stop Push Button

Way
Single Phase/Three Phase

Thickness
1.6 mm

Rated Operation Voltage
415V

Cover Material
Metal

Cabinet Material
Sheet Metal

Rated Current
16A/25A/32A

Control System
Manual

Base Material
Metal

Cooling System
Air cooled

Features
Robust Construction, Corrosion Resistance, Easy Installation

Protection Level
IP54

Connectivity Type
Wired

Panel Type
Starter Panel

Operating Voltage
230V/415V

Protection Class
Class I

Product Type
Direct-On-Line (DOL) Starter

Material
Mild Steel

Surface Finish
Powder Coated

Standard
IS/IEC 60947-4-1

Surface Color
White

Rated Voltage
415 Volt (V)

Frequency (MHz)
50 Hz

Maximum Output Current
32A

Dimension (L*W*H)
265 x 185 x 162 mm (approx.)

Warranty
1 Year

Application
Motor Control

IP Rating
Ip54

Cable Entry
Knockouts provided

Starter Type
Water Proof (WP) DOL Starter

Short Circuit Withstand Capacity
6kA

Operating Temperature Range
-10C to +55C

Mounting Type
Wall Mounting

Accessories
Auxiliary Contacts Available

Phase
Available in Single Phase and Three Phase

BCH - Shakti WP DOL Starter Trade Information

Minimum Order Quantity
1 Number

Supply Ability
100 Per Month

Delivery Time
7 Days

About BCH - Shakti WP DOL Starter

Power Up with Confidence BCH Shakti Series DOL Starters

Looking for rugged, reliable motor protection for your agricultural or industrial pumps & motors?

The SHAKTI Series DOL Starters from BCH Electric are engineered for performance and protection from fractional HP to 15HP/11kW.

Why Choose SHAKTI?

Powder-coated IP40 steel enclosure built to last

Wide band coil (190400V) for voltage flexibility

Thermal overload relay with phase loss & imbalance protection

Manual/Auto reset options + test facility

IEC 60947-4-1 compliant global quality standards

Available in multiple models with HRC fuse options for motors from 0.5HP to 15HP.

Whether you're powering submersible pumps or industrial motors, BCH Shakti starters offer easy installation, dependable protection, and long-term durability.

Proudly distributed by M/s. Indo Overseas Marketing your trusted partner for BCH Electric Ltd.

IndoOverseasMarketing@gmail.com | +91-9871157853, 9871964442

Lets connect to explore how we can support your next project.

#BCHElectric #ShaktiStarters #DOLStarter #MotorProtection #PumpSolutions #IndoOverseasMarketing #IndustrialAutomation #ElectricalSolutions #FaridabadBusiness #MakeInIndia

Reliable Motor Control for Demanding Applications

Engineered to meet IS/IEC 60947-4-1 standards, the BCH Shakti WP DOL Starter provides reliable protection and control for motors up to 32A and 415V. Its robust sheet metal construction, powder-coated finish, and water-proof capabilities make it ideal for industrial environments where durability and safety are paramount.

Designed for Secure and Easy Installation

With wall mounting capability and pre-fabricated cable knockouts, this starter simplifies both installation and maintenance. The air-cooled design ensures efficient operation even within the challenging temperature range of -10C to +55C, making it versatile for a range of settings.

FAQ's of BCH - Shakti WP DOL Starter:

Q: How is the BCH Shakti WP DOL Starter installed?

A: The BCH Shakti WP DOL Starter features a wall-mounting design with knockouts provided for easy cable entry. Included mounting accessories and clear terminals ensure secure and straightforward installation, suitable for both new projects and retrofits in existing setups.

Q: What applications can benefit from using this DOL starter?

A: This starter is suitable for controlling and protecting motors in industrial and agricultural settings, especially where water-proof and reliable operation is required. Typical uses include pumps, compressors, and machinery where robust motor control is essential.

Q: What safety features does the starter provide?

A: The unit offers IP54 protection against dust and water splash, a durable powder-coated finish, and includes a thermal overload relay and contactors to protect motors from overcurrent and short circuits (up to 6kA withstand capacity).

Q: When should I use the auxiliary contacts provided?

A: Auxiliary contacts are useful when you need additional signaling or control, such as interfacing with external alarms, automation, or for remote indication of the starter's status.

Q: Where can this starter be used considering its temperature range?

A: Designed to operate between -10C and +55C, the starter is suitable for most Indian climates and factory environments, including areas with high humidity or variation in temperatures.

Q: What is the process for routine maintenance?

A: Routine maintenance involves checking cable terminations, cleaning the enclosure, and verifying the operation of push buttons and thermal overload relay, all of which are accessible due to the thoughtful panel design.

Q: What are the benefits of choosing the BCH Shakti WP DOL Starter?

A: Users benefit from reliable motor protection, corrosion resistance, easy mounting, and compliance with international standards. Its robust metal construction, one-year warranty, and availability in both single and three-phase make it a practical solution for suppliers and end users.
