BCH - SHAKTI STARTERS

Name: BCH - SHAKTI STARTERS
Brand: Indo Overseas Marketing
Price: 2100.0 INR
Availability: InStock

Price 2100.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

BCH - SHAKTI STARTERS Specification

Cooling System
Natural Air Cooled

Cabinet Material
Polycarbonate/ABS plastic

Connectivity Type
Wired; Terminal Block

Features
Overload Protection, Easy Installation, Long Service Life

Control System
Manual/Automatic Control Switch

Protection Level
Provided IP protection as per model

Panel Type
Wall Mountable Enclosure

Rated Current
Up to 32A

Thickness
Standard Panel Gauge (Approx. 1.2mm-1.6mm)

Rated Insulation Voltage
690V AC

Operating Voltage
415V/230V AC

Components
MCB/Contactor Relay, Start/Stop Buttons

Protection Class
Class I

Cover Material
Impact Resistant Polymer

Way
Single/Three Phase

Current Rating
Up to 32A

Base Material
Durable Engineering Plastic

Rated Operation Voltage
415V AC

Product Type

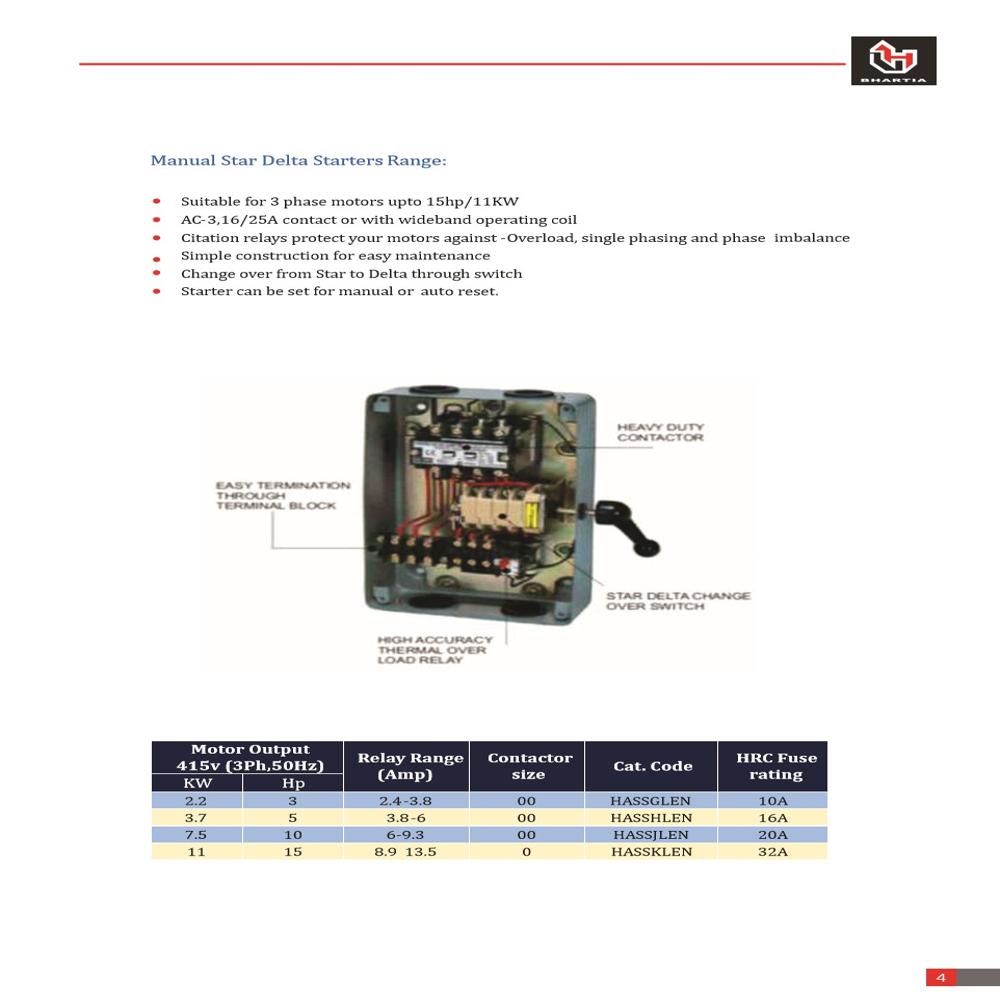

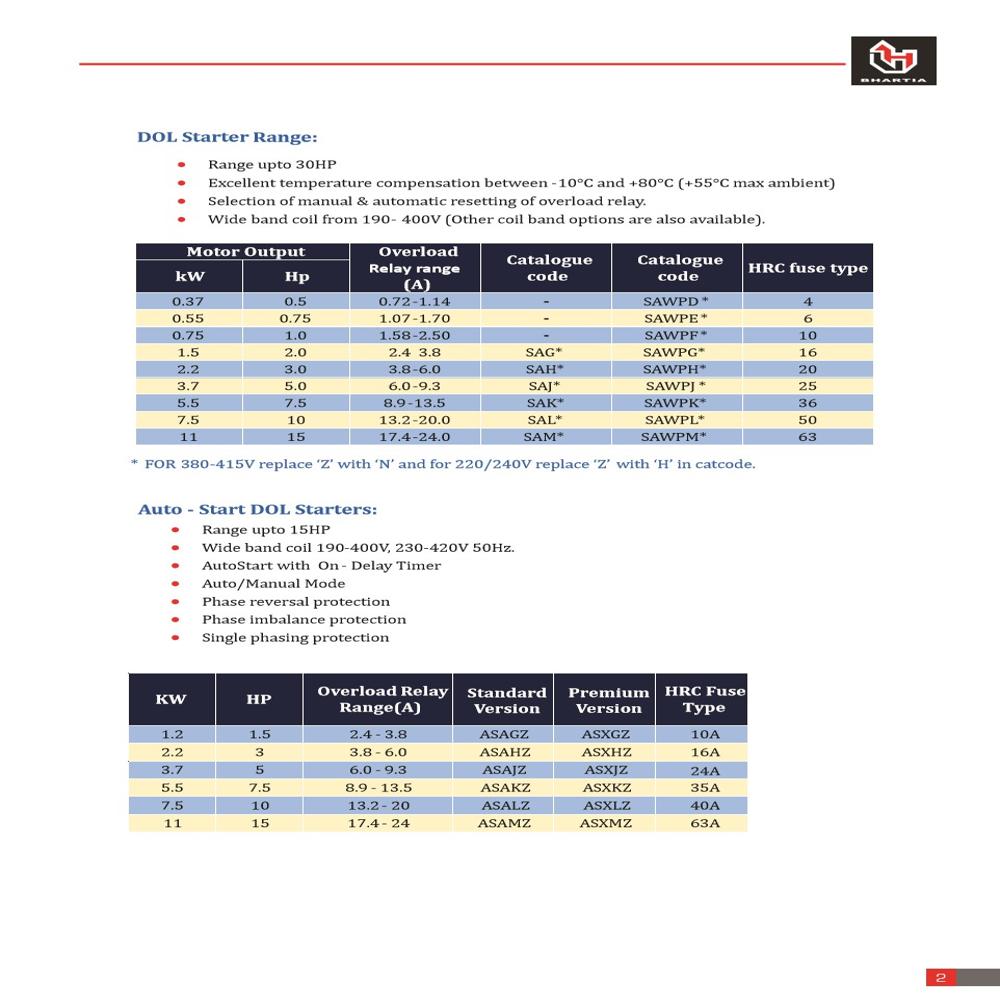

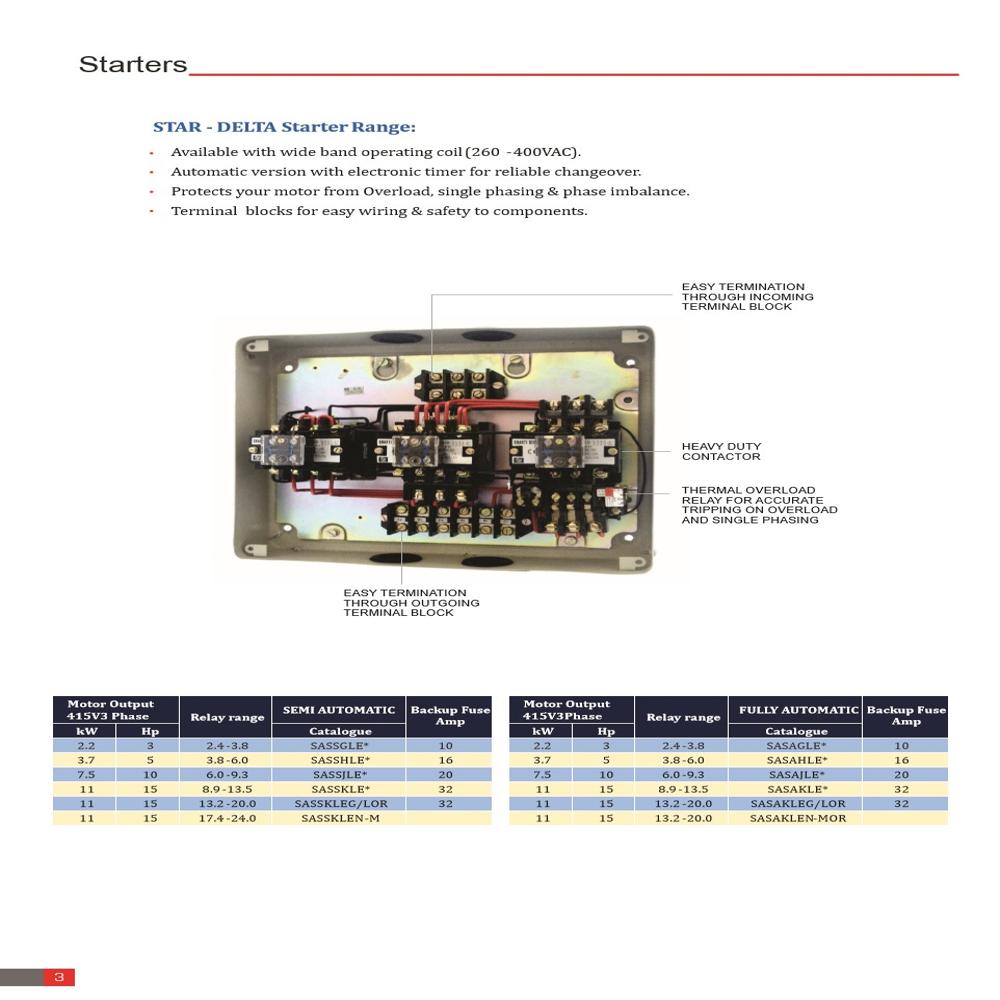

Direct On Line (DOL) and Star Delta Starters

Material
High-grade ABS/Polycarbonate body

Surface Finish
Textured/Matte Finish

Standard
IS/IEC 60947-4-1 compliant

Surface Color
Matte Grey

Rated Voltage
415V AC

Frequency (MHz)
50 Hz

Maximum Output Current
Up to 32A

Dimension (L*W*H)
Varies by model; Compact & Standard sizes available

Application
Pumping, Agriculture Motors, Industrial Drives

IP Rating
IP 20/IP 55 (as per model)

Display Type
Indicating LED/Window (as per model)

Suitable For
Motors up to 15 HP

Mechanical Life
Up to 1 Million Operations

Operation Indicator
LED/Push Button Indication

Reset Type
Manual Reset (Thermal Overload)

Cable Entry
Knockout Provision for Cable Entry

Ambient Temperature Range
-10C to +55C

Mounting Type
Surface/Wall Mounted

Auxiliary Contact
Available on Request

Electrical Life
Up to 100,000 Operations

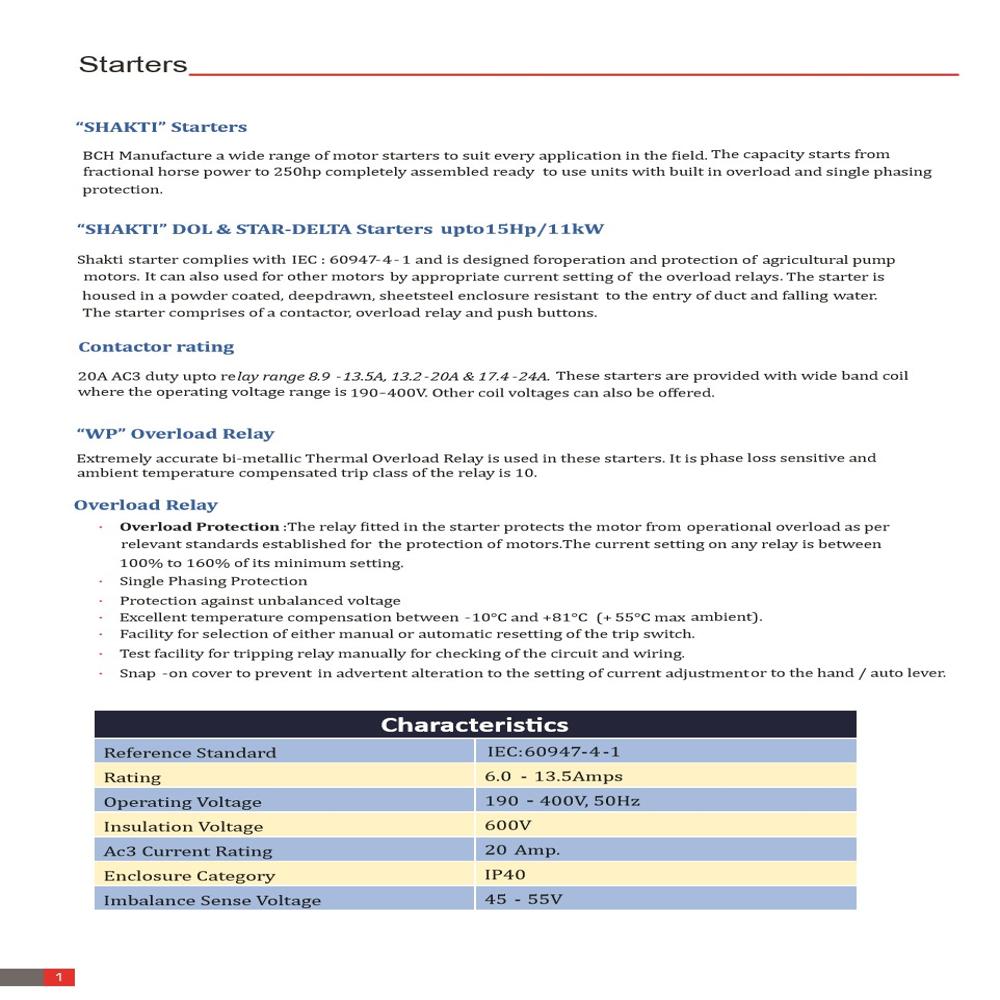

About BCH - SHAKTI STARTERS

Reserve unmatched control with BCH - SHAKTI STARTERS, a renowned solution for surface or wall-mounted applications. Explore the impressive mechanical life of up to 1 million triumphant operations and electrical durability reaching 100,000 cycles. Customizable with auxiliary contacts and available in both manual and automatic control, it's suitable for motors up to 15 HP across pumping, agricultural, and industrial environments. Noteworthy for its IP 20/IP 55 protection, overload defense, and easy installation, this product upholds IS/IEC 60947-4-1 standards, ensuring both reliability and longevity for any project.

BCH - SHAKTI STARTERS: Advanced Applications & Features

BCH - SHAKTI STARTERS are thoughtfully crafted for use across pumping systems, agriculture motors, and industrial drives, seamlessly suitable for both surface/wall applications. With its noteworthy features like an easy-to-read LED/Push Button Indicator, overload protection, manual reset, and resilient polycarbonate/ABS housing, these starters ensure reliability. Quick cable entry, natural air cooling, and textured matte finish elevate the user experience. Its adaptability for single or three-phase systems reflects its versatility and robust engineering principles.

Global Reach and Trusted Certification for BCH - SHAKTI STARTERS

BCH - SHAKTI STARTERS have a triumphant presence in main export markets worldwide and a solid reputation across domestic regions. Certified under IS/IEC 60947-4-1 standards, these starters guarantee safe operation and consistent performance. With efficient logistics, secure packaging standards, and quick dispatch policies, customers enjoy hassle-free delivery. The company's supply chain ensures every product reaches its destination intact and on time, reinforcing BCH's commitment to customer satisfaction and global excellence.

FAQ's of BCH - SHAKTI STARTERS:

Q: How does the overload protection function benefit motor operations in BCH - SHAKTI STARTERS?

A: The overload protection helps prevent motor damage by disconnecting the circuit when excess current is detected, ensuring a longer lifespan and reliable operation of connected motors.

Q: What are the suitable applications for BCH - SHAKTI STARTERS?

A: BCH - SHAKTI STARTERS are ideal for use in pumping systems, agriculture motors, and industrial drives, and are compatible with both single and three-phase motors up to 15 HP.

Q: Where can BCH - SHAKTI STARTERS be installed?

A: These starters are designed for both surface and wall-mounted installations, making them adaptable to various application environments such as industrial sites and agriculture settings.

Q: What makes BCH - SHAKTI STARTERS noteworthy in terms of durability?

A: They offer a remarkable mechanical life of up to 1 million operations and electrical life of up to 100,000 operations, delivering long-term, dependable performance.

Q: How is the quick dispatch process managed for BCH - SHAKTI STARTERS?

A: BCH ensures efficient order processing with robust packaging and prompt logistics support, allowing for quick dispatch and reliable delivery to both domestic and international markets.
