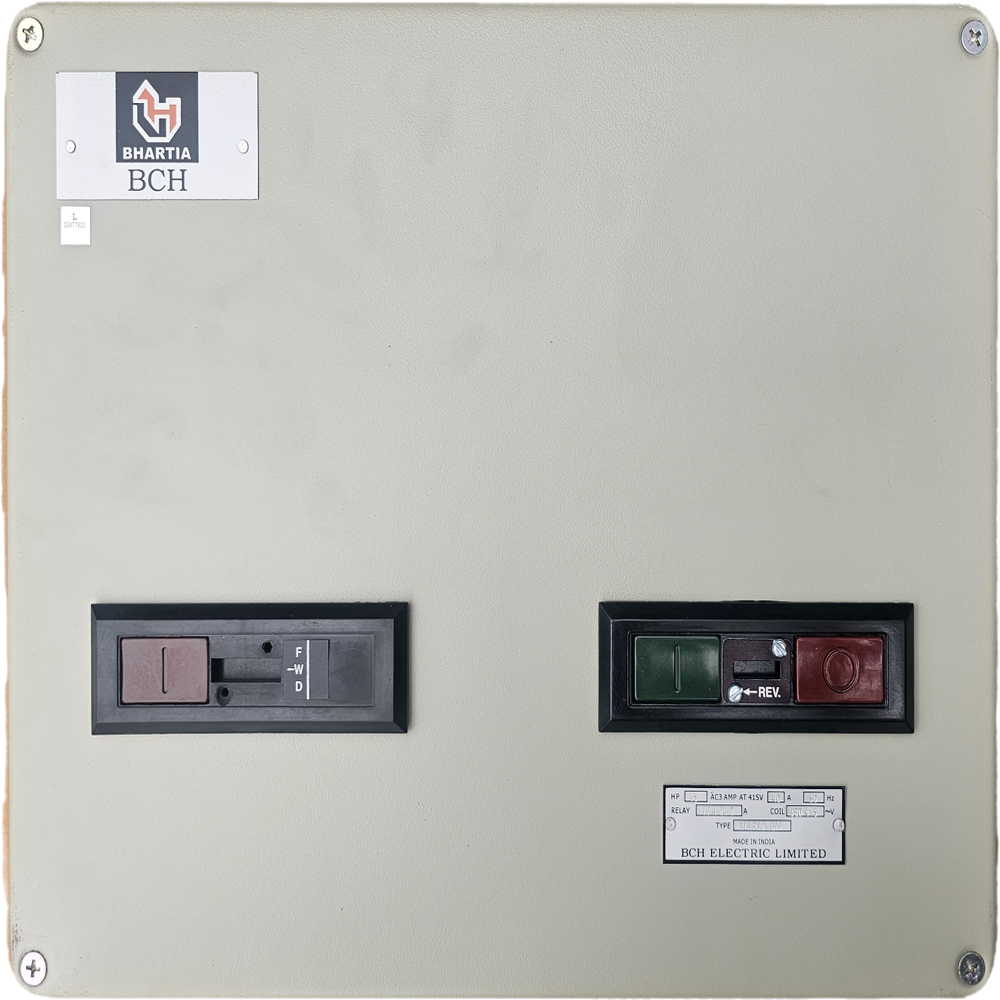

BCH - NARMLEN 15HP Reversing DOL Starter

Send Inquiry

Request To Call Back

BCH - NARMLEN 15HP Reversing DOL Starter

Name: BCH - NARMLEN 15HP Reversing DOL Starter
Brand: Indo Overseas Marketing
Price: 18499.0 INR
Availability: InStock

Price 18499.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

BCH - NARMLEN 15HP Reversing DOL Starter Specification

Panel Type
Surface mount

Cabinet Material
Steel

Rated Current
15 HP / 34A

Cooling System
Natural convection

Control System
Electromechanical

Protection Level
IP42

Operating Voltage
415V AC

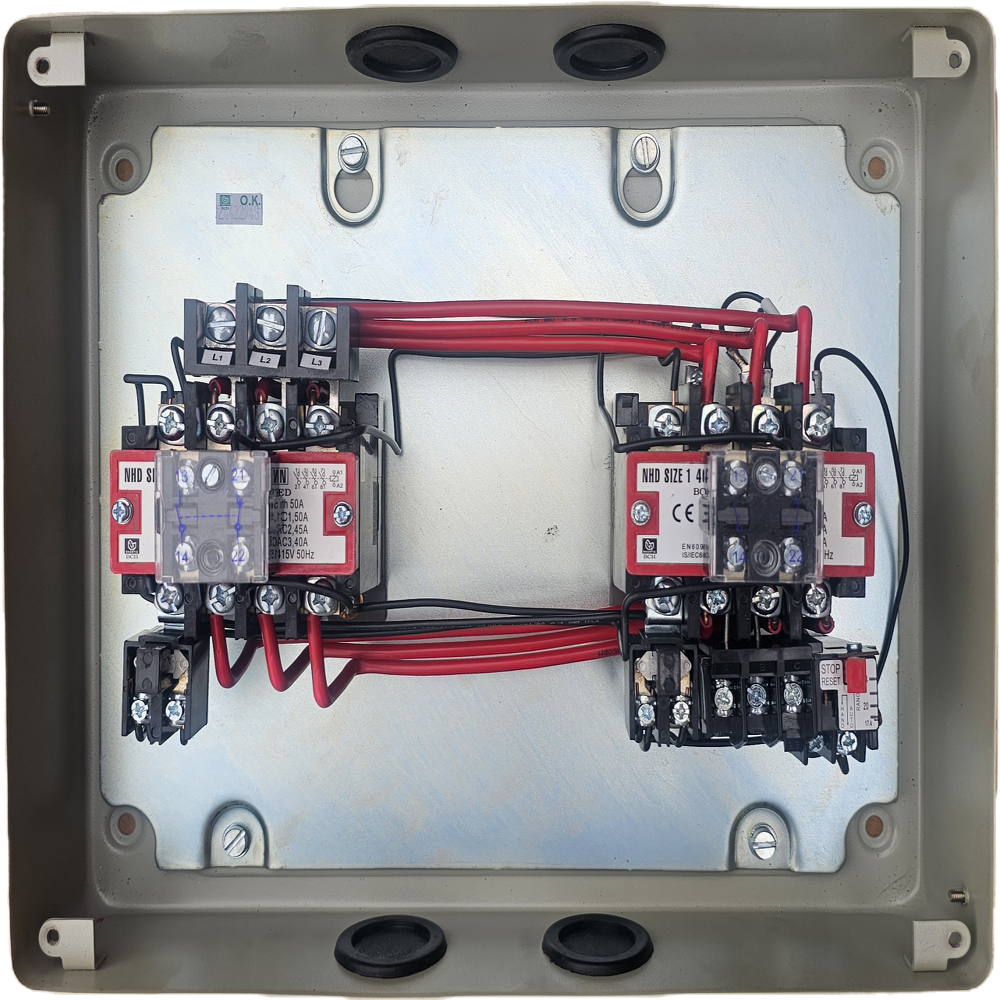

Components
Contactors, thermal overload relay, push buttons

Connectivity Type
Hardwired

Base Material
Mild Steel

Thickness
Approx. 1.2 mm cabinet

Protection Class
Class I

Cover Material
Powder coated steel

Way
Double way (Forward-Reverse)

Rated Insulation Voltage
660V AC

Current Rating
34A

Rated Operation Voltage
415V AC

Features
Forward/Reverse push button, inbuilt overload relay, manual reset, lockable handle

Product Type
Reversing DOL Starter

Material
Metal enclosure

Surface Finish
Textured powder coated

Standard
IS/IEC 60947-4-1

Surface Color
Grey

Rated Voltage
415V AC

Frequency (MHz)
50 Hz

Maximum Output Current
34A

Dimension (L*W*H)
Approx. 400 x 350 x 170 mm

Application
Direct On-Line starting of 3-phase motors with reversing function

IP Rating
IP42

Display Type
Indication via push button color

Mounting Type
Wall mounting

Motor Power Supported
15 HP (11 kW)

Operation Mode
Manual control (Forward/Reverse/Stop push buttons)

Relay Range
13-21A (configurable via relay)

About BCH - NARMLEN 15HP Reversing DOL Starter

Experience the sterling reliability of the BCH - NARMLEN 15HP Reversing DOL Starter, now offered at a reduced price due to scarce availability. This exquisite starter is decorated with a textured powder-coated finish and crafted from robust steel for enduring performance. Designed for 3-phase motors up to 15 HP, it features a configurable relay range, manual forward/reverse operation, and a secure IP42 metal enclosure. Reserve yours today and bring refined control and protection to your industrial motor setups under IS/IEC 60947-4-1 standards.

Versatile Application & Outstanding Features

The BCH - NARMLEN 15HP Reversing DOL Starter offers intuitive manual control through forward, reverse, and stop push buttons. Designed for direct-on-line starting of 3-phase motors, its double-way switching allows rapid direction changes, making it ideal for industrial plants. The unit incorporates inbuilt overload protection and a lockable handle, improving operational safety and ensuring superior motor management across demanding plant environments.

Secure Packaging, Sample Policy & Flexible Payments

Our packaging ensures safe transport of the BCH - NARMLEN 15HP Reversing DOL Starter, using robust materials to minimize transit damage. Goods are shipped via reliable logistics partners to maintain product integrity. Interested customers may inquire about sample availability and our transparent sample policy. Payments can be completed at the listed price through various standard methods, allowing for a smooth transaction and prompt delivery of your reserved unit.

FAQ's of BCH - NARMLEN 15HP Reversing DOL Starter:

Q: How is the BCH - NARMLEN 15HP Reversing DOL Starter operated?

A: This starter is manually controlled using clearly marked forward, reverse, and stop push buttons for efficient switching and operation.

Q: What type of motors can this DOL starter support?

A: It is designed for direct-on-line starting and reversing of three-phase motors with a power rating up to 15 HP (11 kW).

Q: Where is this starter most effectively used?

A: Its robust construction and protection features make it ideal for industrial plants, manufacturing lines, and applications requiring dependable motor control with frequent reversing.

Q: What is the process for reserving this scarce product?

A: You can reserve the unit by placing an order through authorized suppliers. Due to reduced price and limited stock, it's advisable to act swiftly.

Q: What are the core benefits of using this starter for motor control?

A: The starter delivers precise control over motors, enhanced operational safety through inbuilt overload protection, and a durable, lockable enclosure for peace of mind in demanding environments.
