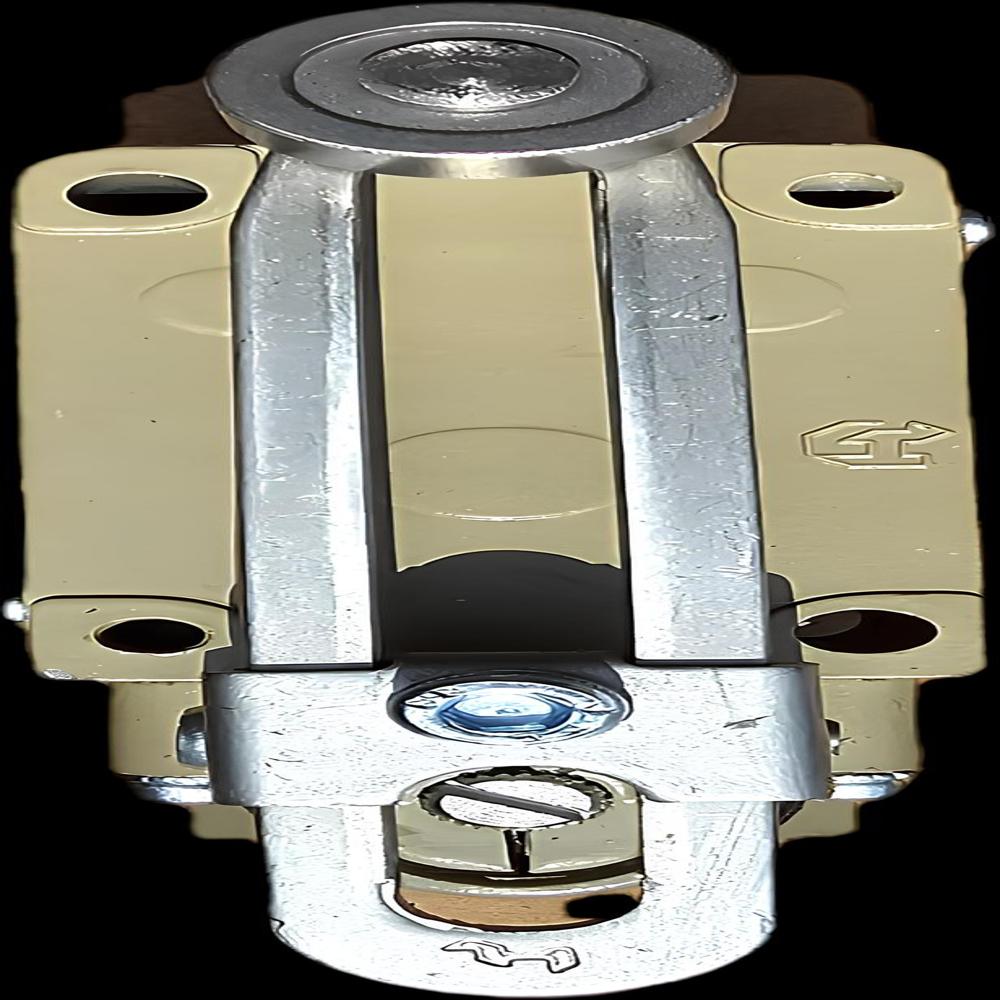

BCH - LLA Limit Switch

Name: BCH - LLA Limit Switch
Brand: Indo Overseas Marketing
Price: 3087.0 INR
Availability: InStock

Price 3087.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

BCH - LLA Limit Switch Specification

Rated Voltage
250V AC/24V DC

Number of Module
Single

Protection Level
IP-65

Finish Type
Powder Coated

Max. Current
10A (AC), 2.5A (DC)

Temperature Range
-25C to +70C

Automation Grade
Automatic

Mechanical Life
10,000,000 operations min.

Circuit Type
SPDT

Response Time
<10 ms

Product Type
LLA Limit Switch

Material
Die-cast Aluminum Alloy (Body), Thermoplastic (Cover)

Insulation Resistance
>100 M (at 500V DC)

Contact Resistance
<25 m (initial)

Max. Voltage
500V AC

Operating Temperature
-25C to +70C

Stoke
10 mm (plunger travel)

Size
Standard industrial size (See drawing for details)

Color
Grey & Black

Weight
Approx. 350 g

Mounting Type
Panel / Surface Mounting

Current Rating
10A AC, 2.5A DC

No Of Poles
1 Pole

Shock Resistance
1000 m/s2 (100G)

Degree of Pollution
3

Ambient Humidity
35% to 85% RH

Contact Type
Snap Action

Electrical Life
500,000 operations min.

Terminal Type
Screw Terminal

Actuator Type
Plunger (Top Roller)

Cable Entry
Pg13.5

Vibration Resistance
10 to 55 Hz, 1.5 mm double amplitude

About BCH - LLA Limit Switch

Experience first-string performance with the top-rated BCH - LLA Limit Switch, now available for quick shipment. Engineered with a crackerjack snap action mechanism and valorous durability, this limit switch boasts an electrical life of 500,000+ operations and a mechanical life of 10 million. Its die-cast aluminum alloy body and IP-65 protection deliver superior reliability in the harshest environments. Easily personalise installation with screw terminals and panel/surface mounting options. Shop now and enjoy the premium build, rapid response, and steadfast insulation resistance that industry leaders trust.

Versatile Usage & Applications

The BCH - LLA Limit Switch excels in a variety of automation and industrial applications, providing precise actuation for machinery and conveyor systems. Featuring automatic operation and a robust SPDT circuit, it is suitable for use in factories, assembly lines, and process equipment, especially where durability and quick response are critical. Its high ambient humidity tolerance and broad temperature range make it a reliable choice for both indoor and outdoor use.

Premium Packaging & Shipment Details

Our BCH - LLA Limit Switch is securely packaged to prevent any expenditure on damage during transit, ensuring you receive a pristine, premium product. Shipments are processed from the main FOB port, reaching customers nationwide. The main domestic market coverage guarantees swift and cost-effective delivery, minimizing lead times and optimizing operational readiness. Trust our efficient shipment process for peace of mind and best-value industrial automation solutions.

FAQ's of BCH - LLA Limit Switch:

Q: How do I install the BCH - LLA Limit Switch?

A: The BCH - LLA Limit Switch can be easily installed using its panel or surface mounting options and screw terminals, ensuring integration with standard industrial equipment.

Q: What makes the BCH - LLA Limit Switch suitable for harsh environments?

A: With an IP-65 protection level, robust die-cast aluminum body, and tolerance for wide temperature and humidity ranges, the switch performs reliably even in demanding industrial settings.

Q: Where can the BCH - LLA Limit Switch be used effectively?

A: This limit switch is ideal for automation systems, machinery controls, and conveyor lines in manufacturing plants that require precise actuation and high endurance.

Q: When should I replace the BCH - LLA Limit Switch?

A: Thanks to its 500,000 minimum electrical life and 10 million mechanical operations, replacement is rarely needed, but it's advisable to inspect and replace after excessive wear or reaching operation limits.

Q: What is the benefit of the snap action contact type?

A: The snap action contact ensures rapid and reliable switching with minimal response time (under 10 ms), enhancing operational safety and efficiency in automated systems.
