BCH - BOCRSS-60S (MP21SS060S4) Electronic Overcurrent Relay

Send Inquiry

Request To Call Back

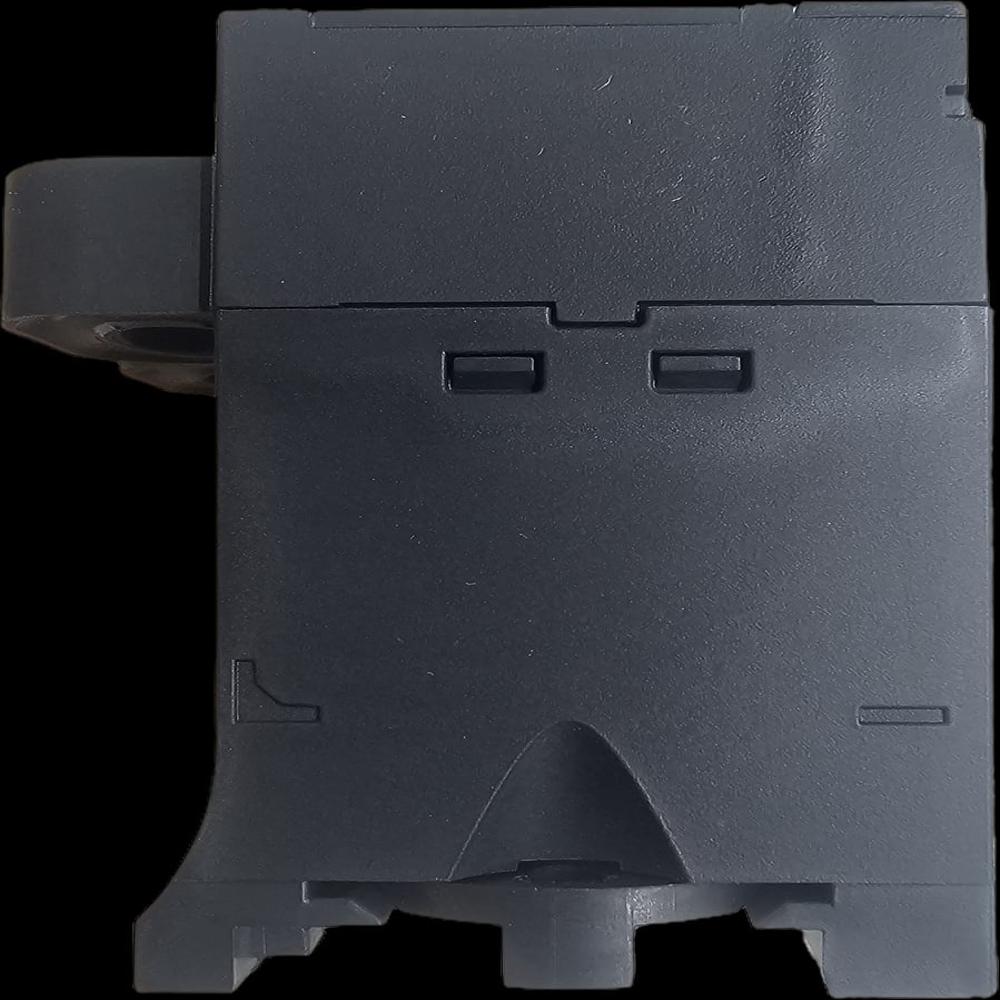

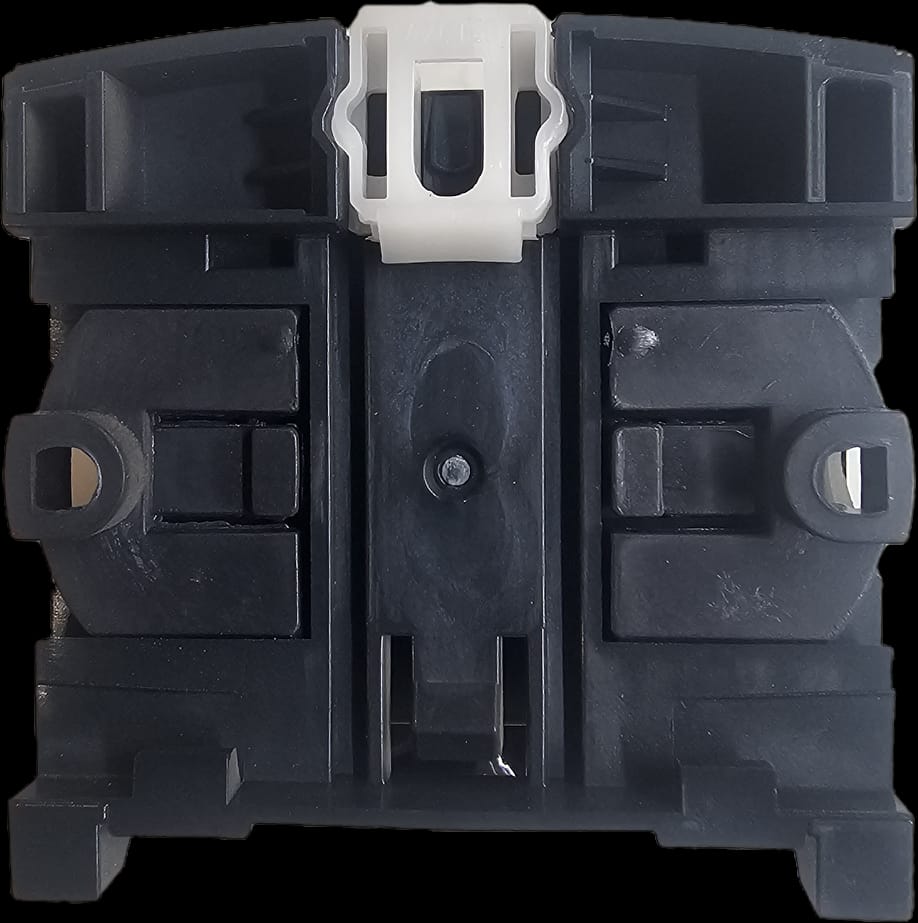

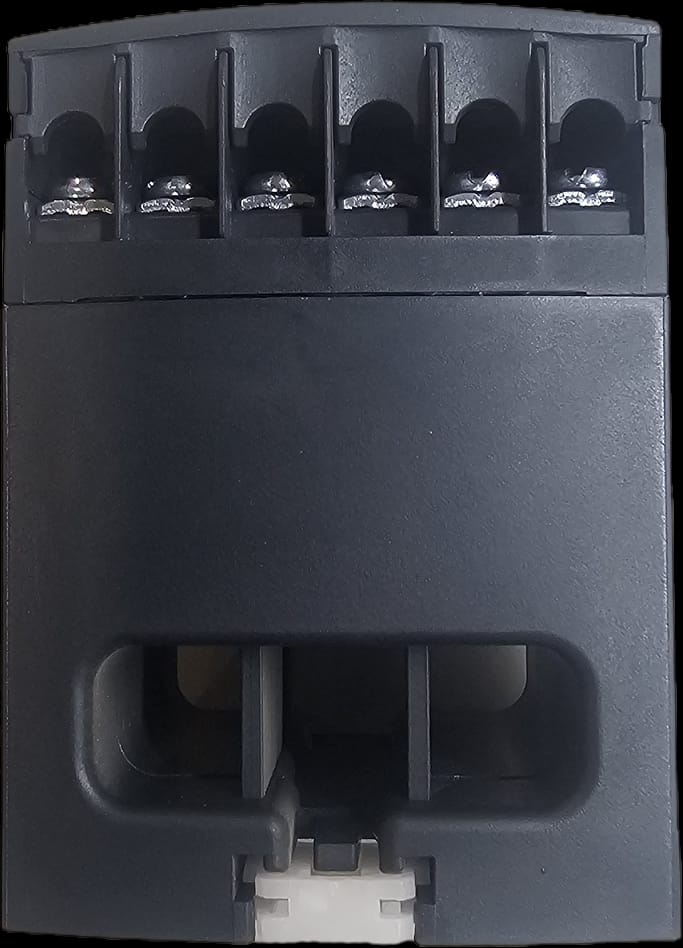

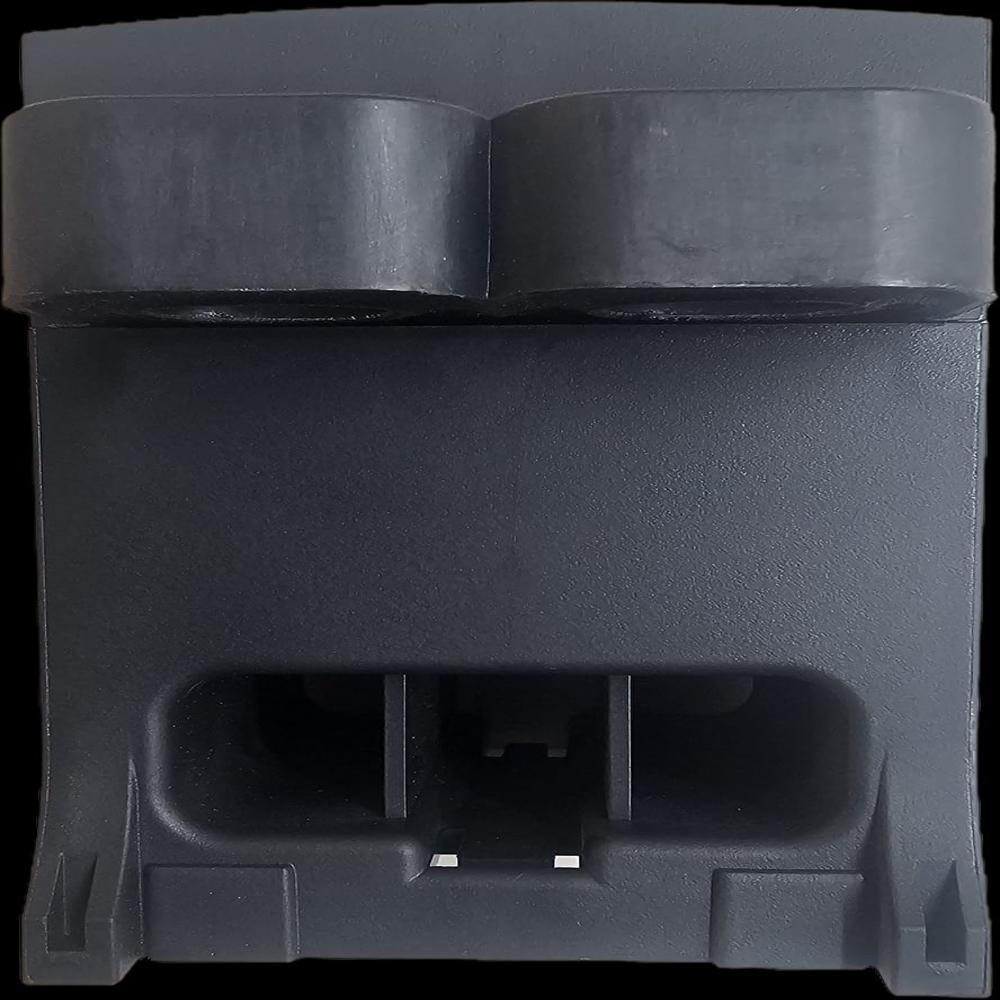

BCH - BOCRSS-60S (MP21SS060S4) Electronic Overcurrent Relay

Name: BCH - BOCRSS-60S (MP21SS060S4) Electronic Overcurrent Relay
Brand: Indo Overseas Marketing
Price: 3199.0 INR
Availability: InStock

Price 3199.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

BCH - BOCRSS-60S (MP21SS060S4) Electronic Overcurrent Relay Specification

Contact Form
1 Changeover (SPDT)

Dielectiric Strength
2kV AC for 1 minute between coil and contacts

Coil Power
Approx. 2.5VA

Power Consumption
3W

Contact Resistance
50m

Working Temperature
-10C to +55C

Coil Voltage
220-240V AC

Contact Material
Silver Alloy

Ambient Temperature
-10C to +55C

Mechanical Life
10 million operations (typical)

Protect Feature
Electronic Overcurrent detection and isolation

Product Type
Electronic Overcurrent Relay

Insulation Resistance
>100M at 500V DC

Theory
Electronic Relay

Usage
Electronic Overcurrent Protection Relay

Contact Load
5A at 250V AC / 30V DC

Operate Time
Adjustable Delay Time (D-TIME): 1-30 seconds; O-TIME: 1-10 seconds

Terminal Type
Screw Type Terminal

Rated Voltage
220-240V AC, 50/60Hz

Supply Terminal
A1, A2

Size
Compact mounting (specific dimensions see below)

Color
Black

Dimension (L*W*H)
Approx. 70mm x 45mm x 85mm (typical, check datasheet for exact value)

Weight
Approx. 250g (typical for this series, refer to datasheet for exact model)

Phase Monitoring
Selectable Phase Sequence (N/R switch)

Test Function
TEST button for relay operation verification

Application
Motor protection, industrial loads, phase and overload protection

Current Setting Range
0.5A to 6A (LOAD dial adjustable)

Indication
LED Indication for Power (PWR) and Trip (TRIP)

Conformity Standard
IS/IEC 60947-5-1

Model Number
BOCRSS-60S (MP21SS060S4)

Mounting Type
DIN Rail Mount or Panel Mount

Reset Type
Manual and Electrical RESET button

Time Setting Range (Delay)
D-TIME: 1-30 sec; O-TIME: 1-10 sec (independent adjustment)

About BCH - BOCRSS-60S (MP21SS060S4) Electronic Overcurrent Relay

Discover the remarkable BCH - BOCRSS-60S (MP21SS060S4) Electronic Overcurrent Relay, now available at a new, reduced price! This towering masterpiece in industrial safety ensures reliable motor and load protection with its adjustable current setting (0.5A to 6A), precision time controls, and clear LED status indicators. Easy DIN rail or panel mounting simplifies installation, while the phase monitoring capability enhances operational confidence. Purchase this high-performance relay and benefit from unmatched overload and phase protection-engineered for industrial dependability and conforming to IS/IEC 60947-5-1 standards.

Versatile Application & Features of BCH Overcurrent Relay

Ideal for advanced motor protection and safeguarding industrial loads, the BCH - BOCRSS-60S excels in phase and overload protection. With features such as selectable phase sequence, independent delay adjustments, LED indicators, and both manual or electrical reset options, this electronic relay suits diverse working environments. The included test function verifies relay operation seamlessly, making it an essential choice for factories, automation systems, and any equipment requiring rigorous overcurrent and phase anomaly detection.

Export Markets, Sample, and Dispatch Details

BCH - BOCRSS-60S (MP21SS060S4) Electronic Overcurrent Relay enjoys strong supply to global export markets thanks to its reliability and quality. Available for purchase at a competitive sale price, samples can be arranged for evaluation. Each unit is carefully packed for secure dispatch, meeting client requirements for timely delivery and safe arrival. Contact your supplier or trader to discuss packaging details, bulk orders, and fast shipment options for your industrial needs.

FAQ's of BCH - BOCRSS-60S (MP21SS060S4) Electronic Overcurrent Relay:

Q: How is the BCH - BOCRSS-60S (MP21SS060S4) installed?

A: This relay offers flexible mounting options; it can be easily installed on a DIN rail or mounted directly onto a panel, catering to various industrial setups.

Q: What application areas are ideal for using this electronic overcurrent relay?

A: It is best suited for motor protection, industrial load monitoring, phase sequence checking, and overload protection in factories, automation centers, and process industries.

Q: How does the relay signal operational status and faults?

A: The BCH relay features clear LED indications for Power (PWR) and Trip (TRIP), providing immediate status feedback and fault alerts for easy monitoring.

Q: Where can I purchase the BCH - BOCRSS-60S at a new sale price?

A: You can obtain this relay from authorized industrial suppliers and traders. Inquire directly with them to learn about the latest price cuts and availability for your region.

Q: What are the benefits of using the TEST and RESET functions on this relay?

A: The TEST button allows verification of relay operation without disconnecting the system, while the RESET button (manual or electrical) ensures quick recovery from tripped states, boosting maintenance efficiency.

Q: When is it recommended to use the adjustable delay timers (D-TIME and O-TIME)?

A: Adjust the delay timers to customize tripping and operating times, which is particularly useful for protecting sensitive equipment from false trips or to suit specific application requirements.
