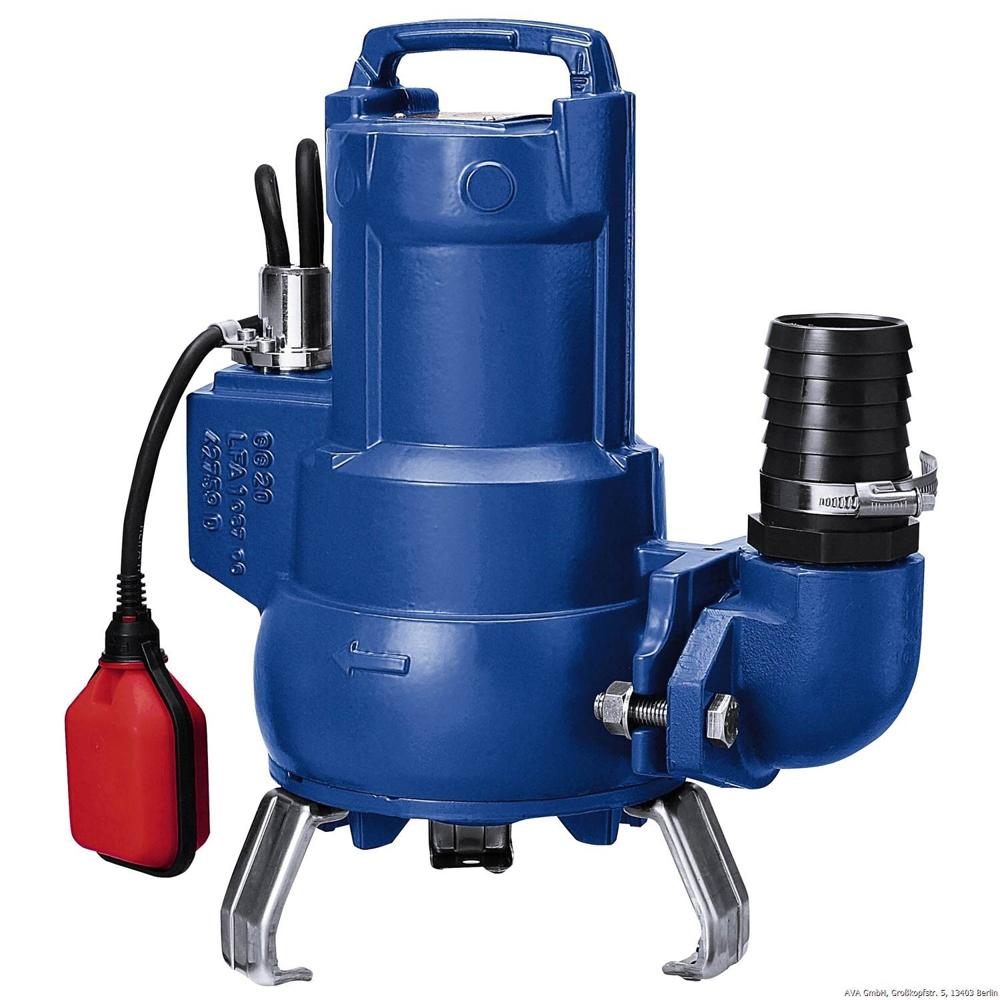

Ama Porter 503 SE

Name: Ama Porter 503 SE
Brand: Indo Overseas Marketing
Price: 29999.0 INR
Availability: InStock

Price 29999.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Ama Porter 503 SE Specification

Motor
Single-phase, 230V

Impellars Type
Vortex/Non-Clog

Structure
Monobloc

Material
Cast Iron

Type
Submersible Sewage Pump

Style
Vertical

Power
0.37 kW

Standard
CE Certified

Fuel Type
Electric

Pressure
Low Pressure

Application
Wastewater, Slurry, Sewage Treatment

Suction Type
Submersible

Seals Type
Mechanical Seal

Priming
Self-Priming

Weight
14 kg

Protection Class
IP68

Noise Level
Low, <70 dB(A)

Max Solid Passage
30 mm

Temperature of Liquid
Up to 35C

Start Method
Automatic with Float Switch

Max Flow Rate
13 m3/h

Cable Length
10 meters

Max Delivery Head
8.5 m

Outlet Diameter
2 inch (50 mm)

Ama Porter 503 SE Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

About Ama Porter 503 SE

KSB - Ama Porter 503 SE
Submersible Motor Pump

Applications:

1. Pumping all types of waste water

2. Disposal of sludges and solids-laden fluids

Power Supply: 230 V, 50 Hz, Single Phase

Motor Rating: 1.5 HP / 1.1 kW
Rated Current: 8 Amps
Cable Size: 1 sq.mm. X 3 Core
Free Passage: 41 mm
Head Range: 4 Mtrs. - 15 Mtrs.
Discharge Range: 482 LPM - 63 LPM

Efficient Wastewater Management

The Ama Porter 503 SE streamlines sewage and slurry handling with its vortex/non-clog impeller. Its robust cast iron design and self-priming capability facilitate reliable operation in challenging environments. With the ability to process solids up to 30 mm in diameter, this pump is ideal for wastewater, sewage, and treatment facilities.

Automatic Operation and Low Noise

Featuring an automatic float switch, the Ama Porter 503 SE offers hassle-free start and stop based on fluid levels. Its advanced mechanical seal safeguards internal components, while operation remains unobtrusive with noise levels below 70 dB(A). This makes it a quiet choice for both residential and industrial installations.

Safety and Certification

Certified to CE standards and possessing an IP68 protection class, this electric pump ensures robust performance in submerged environments. Its single-phase motor, protected by a 10-meter cable, guarantees user security and pump reliability. The temperature rating up to 35C further widens its scope for a variety of liquid-handling applications.

FAQ's of Ama Porter 503 SE:

Q: How does the automatic float switch in the Ama Porter 503 SE work?

A: The automatic float switch monitors the liquid level, starting the pump when the level rises and stopping it when the liquid falls below a set point. This mechanism ensures automatic, hands-free operation without the need for manual intervention.

Q: What type of solid particles can the Ama Porter 503 SE handle?

A: This pump is designed to handle solid particles up to 30 mm in diameter, thanks to its vortex/non-clog impeller. It is well-suited for sewage, slurry, and other wastewater containing debris.

Q: Where is the Ama Porter 503 SE typically installed?

A: The Ama Porter 503 SE is ideal for installation in wastewater systems, sewage treatment tanks, and slurry management pits. Its submersible design and robust structure make it suitable for both commercial and industrial environments.

Q: What are the main benefits of using the Ama Porter 503 SE?

A: Key benefits include dependable solid handling, quiet operation, easy installation with a single-phase plug, durable cast iron construction, and automatic, energy-efficient control via the float switch.

Q: When should this submersible sewage pump be serviced or inspected?

A: Regular maintenance should be scheduled based on usage conditions, but generally, inspections every 6 to 12 months are recommended to ensure optimal performance and longevity of the pump.

Q: How is the Ama Porter 503 SE protected against harsh environments?

A: With an IP68 rating, the pump is fully protected against ingress of dust and long-term immersion in water. The mechanical seal also protects internal components from fluid and contaminants.
